PRODUCTS

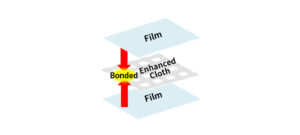

Improved strength with enhanced cloth
Teru Ace™ Series (White, BK&WH, Crystal)
Films for outside surface covering and for roll up sides of greenhouses
Features
- Enhanced cloth hardly stretches and is easy to roll up.
- Uneven surface prevents the film from becoming sticky.
- Impregnated with an anti-sticking agent to prevent drops falling on crops. (Teru Ace Crystal™)
Applications
・Teru Ace Crystal™

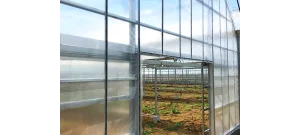

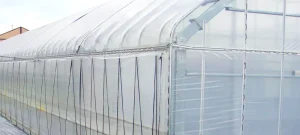

Roll up sides, fixed installation for the front/back or lower parts of greenhouses, ducts (processed products)
・Teru Ace™ White, Teru Ace™ BK&WH

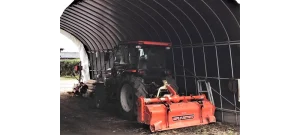

Outside surface covering of warehouses and garages, fixed installation for the sides
Line-up/types
(light shielding rate: about 90%)
(light shielding rate: about 95%)
(light shielding rate: about 99%)
Product specifications
Whole cloth specifications
| Product name | Category | Specifications | |
|---|---|---|---|
| Width (m) | Length (m) | ||
| Teru Ace Crystal™ | Outside surface covering | 1.35 1.50 1.85 2.10 2.30 2.70 |
100 |
Processed product specifications
| Product name | Category | Specifications | |
|---|---|---|---|
| Width (m) | Length (m) | ||
| Teru Ace Crystal™ | Outside surface covering | 0.60 0.90 1.35 1.50 1.85 2.10 2.30 2.70 3.00 3.30 3.60 4.00 4.15 4.55 4.95 5.35 5.70 6.05 6.35 6.80 7.15 7.60 8.00 8.30 8.60 8.95 9.05 9.50 9.85 10.25 10.65 11.30 |
Available by the meter |
* Please consult for wider processed products (11.30 meters or wider).
| Product name | Category | Specifications | |
|---|---|---|---|
| Width (m) | Length (m) | ||
| Teru Ace™ White Teru Ace™ BK&WH |
Outside surface covering | 0.90 1.80 2.60 3.50 4.40 5.30 6.10 7.00 7.90 8.80 9.60 10.50 11.40 12.20 13.00 13.90 |
Available by the meter |
* Please consult for wider processed products (15.70 meters or wider).
* The area of one sheet can be up to 320 m².
Physical properties
| Measurement item | Teru Ace™ | Method of measurement | ||
|---|---|---|---|---|
| Crystal | White | BK&WH | ||
| Thickness (mm) | 0.23 | 0.33 | 0.33 | In-house method (reference value) |
| Weight (g/m2) | 135±20 | 260±30 | 260±30 | In-house method |
| Tensile strength: vertical (N/50 mm) | 250 or greater | 250 or greater | 250 or greater | Referred to JIS L 1096 |
| Rate of elongation: vertical (%) | 12 or greater | 12 or greater | 12 or greater | Referred to JIS L 1096 |
* Date are not guaranteed values but for reference only.
* Thickness of the sheet is just for reference in selection because measurement values vary widely due to the uneven surface of the fabric.
SDS (Safety Data Sheet)
Processing examples
Can be processed with metal eyelids, ropes, or zip fasteners, or into bags or ducts.
Note:
Teru Ace™ BK&WH does not provide greenhouses with complete light shield.
Do not use it to completely shield light for white asparagus cultivation, fish culture, etc.
